| Parameter | Value |
|---|---|

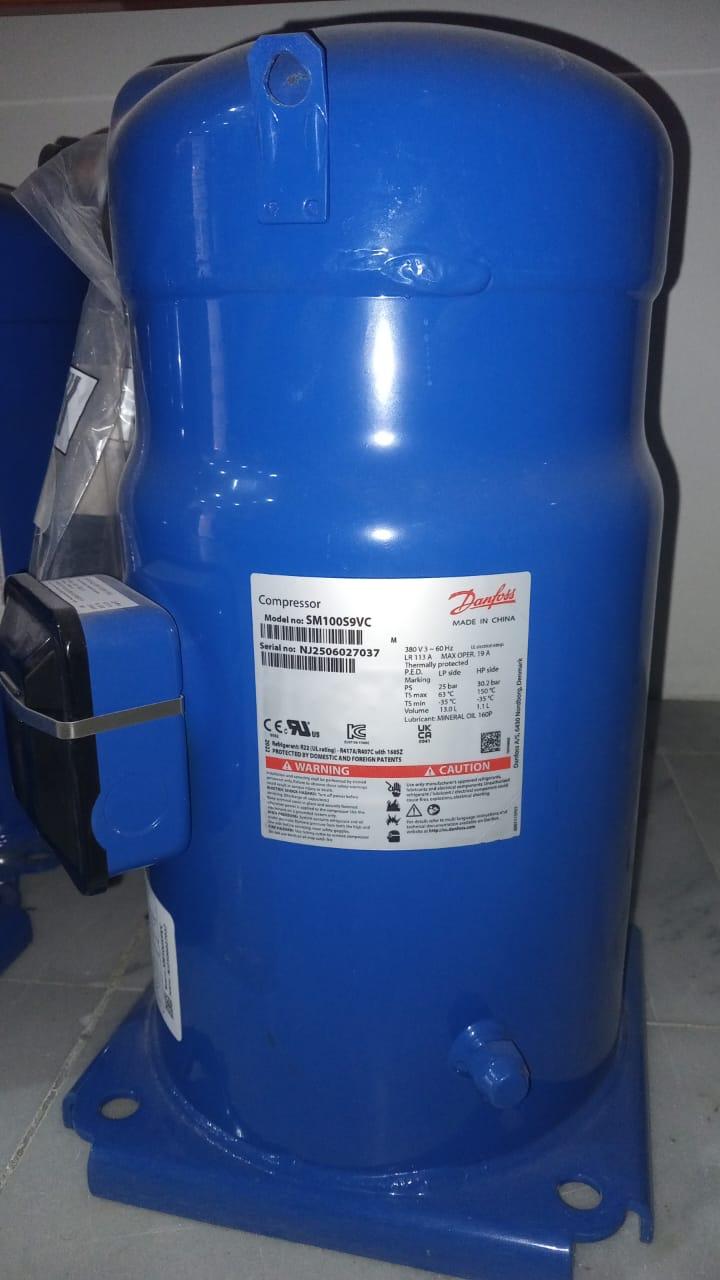

| Model | SM100-9VM (SM100S9VC) |
| Type | Hermetic Scroll Compressor |
| Voltage | 380–400V, 3 Phase, 60Hz |
| Voltage Range | 342–418V |
| Refrigerant | R22 |
| Displacement | 127.2 cm³/rev |
| Oil Type | Mineral Oil 160P |
| Oil Charge | 3.25 L |
| Suction Connection | 1-1/8" ODF |
| Discharge Connection | 3/4" ODF |
| LRA | 113 A |
| RLA | 15.7 A |
| MOC | 19 A |
| MCC | 22 A |
| Speed | 3500 RPM |
| Protection | Internal overload protector |
| IP Rating | IP54 |
| Weight | ~60–65 kg |
| Capacity Control | Fixed Speed |
