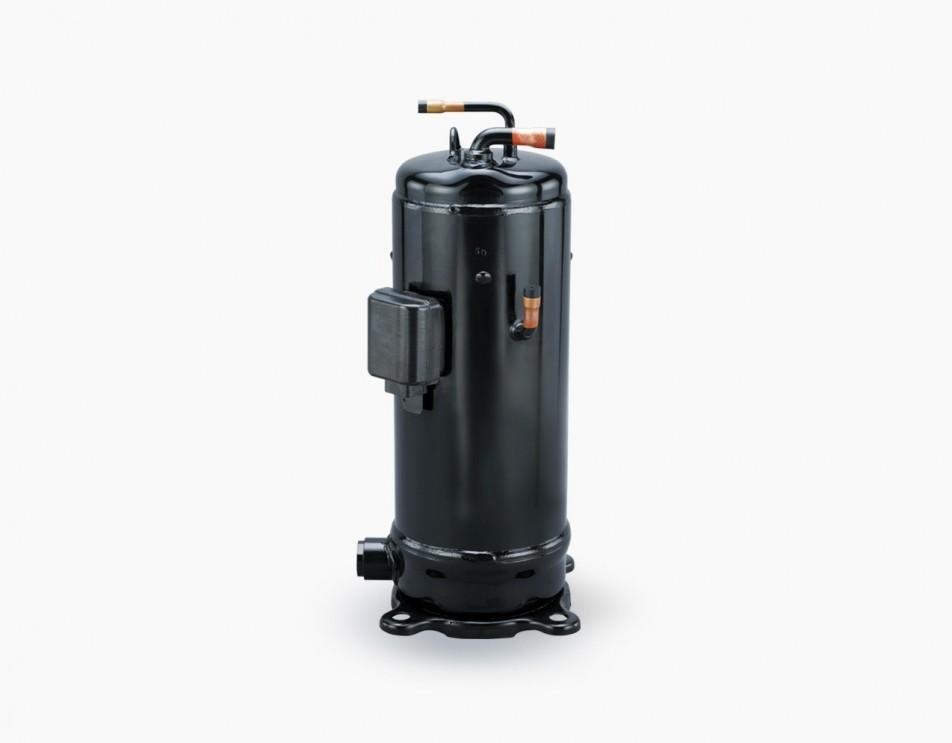

SCROLL TECH ST-R125 KE-TF5-3PH-220V60HZ-R407 COMPRESSOR
Inhouse product
-
105.00
-
1,748.00
1,788.25
SCROLL TECH ST-R125 KE-TF5-3PH-220V-60HZ-R407
Scroll Compressor (High capacity ~10 HP class / ~120,000–125,000 BTU/h)
This model belongs to the ScrollTech ST-R125 series, designed for medium-to-large commercial HVAC systems using R407C refrigerant.
Based on the ST-R125 platform technical data, it is in the ~10 HP scroll compressor class, comparable in capacity to Copeland ZR125 series compressors.
Key Specifications (ST-R125 TF5 version)
- Brand: ScrollTech
- Model: ST-R125 KE-TF5
- Compressor type: Hermetic scroll
- Refrigerant: R407C
- Power supply: 3-Phase, 220V, 60Hz (TF5 low-voltage version)
- Capacity: ~120,000–125,000 BTU/h class
- Motor class: ~10 HP
- Oil type: POE oil (R407C compatible)
Verified technical reference (equivalent class)
Industry-equivalent compressor data (same capacity range) shows:
- Nominal capacity: ~125,000 BTU/h
- Displacement: ~29 m³/h class
- Suction line: 1-3/8”
- Discharge line: 7/8”
Copeland equivalent: ZR125KCE-TF5 series (same BTU class, same piping size, same application range)
Typical Applications
- 10 ton commercial split AC systems
- Rooftop packaged units
- Small air-cooled chillers
- Large VRF auxiliary fixed-speed circuits
Electrical Notes (TF5 – 220V 3 Phase)
- Requires 3-phase 220–230V supply
-
Must use:
- Proper contactor
- Thermal overload protection
- Correct capacitor is NOT used (scroll is 3-phase direct motor)
- Must ensure correct phase rotation (important for scroll compressors)
Key Features
- High efficiency scroll design
- Low noise & vibration
- Internal motor protection
- Stable operation under variable load
- Compatible with R407C (POE oil system)
